Selection Guide of Small Size Rotary Evaporators

Select Condensers, Driving units and Baths according to your experiments

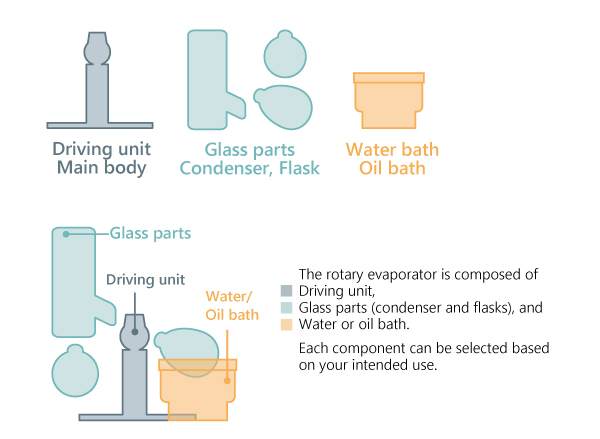

• Rotary evaporator basic configuration

A rotary evaporator generally consists of three main components.

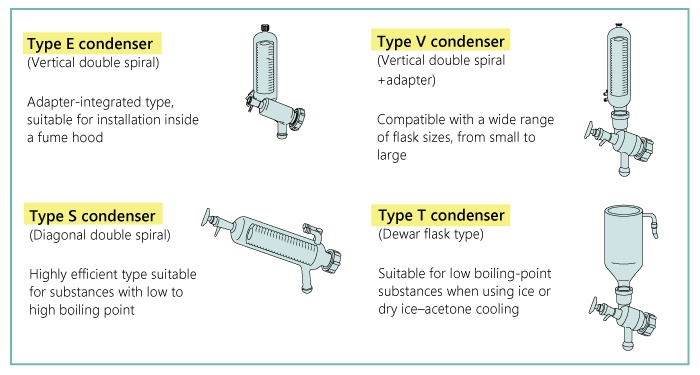

• Types of condensers

Choose the condenser best suited to your application and purpose.

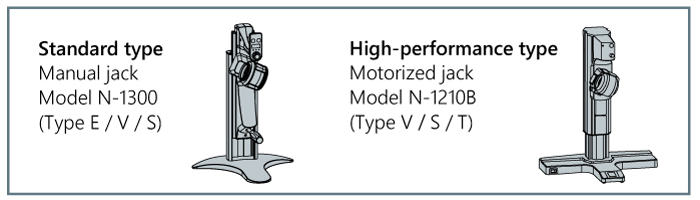

• Types of driving units

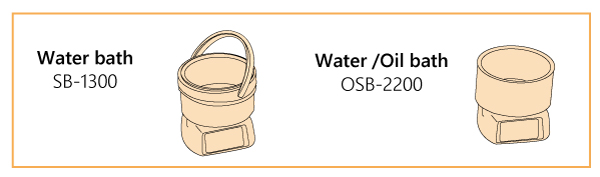

• Types of baths

• Combination guide for rotary evaporator N-1300 series

Condensers		Type E condenser		Type V condenser		Type S condenser
Model		E-29	EF-29	V-29	VF-29	S-29
Cat. No.		266310	–	266290	–	266270
Condenser
Driving unit		N-1300E	N-1300EF	N-1300V	N-1300VF	N-1300S
Model	N-1300
Water bath		N-1300E-W	N-1300EF-W	N-1300V-W	N-1300VF-W	N-1300S-W
Model	SB-1300
Water / Oil bath		N-1300E-WB	N-1300EF-WB	N-1300V-WB	N-1300VF-WB	N-1300S-WB
Model	OSB-2200

• Combination guide for rotary evaporator N-1210B series

Condensers		Type V condenser		Type S condenser		Type T condenser
Model		V-29	VF-29	S-29		T-29
Cat. No.		269990	–	266270		270030
Condenser
Driving unit		N-1210BV	N-1210BVF	N-1210BS		N-1210BT
Model	N-1210B
Water bath		N-1210BV-W	N-1210BVF-W	N-1210BS-W		N-1210BT-W
Model	SB-1300
Water / Oil bath		N-1210BV-WB	N-1210BVF-WB	N-1210BS-WB		N-1210BT-WB
Model	OSB-2200

• N-1300・N-1210B quick selection guide

Jack type		Manual jack			Motorized jack
Bath type		Without bath	Water bath	Water・oil bath	Without bath	Water bath	Water・oil bath
Condenser Type E	Vertical double spiral	N-1300E	N-1300E-W	N-1300E-WB	–	–	–
Type EF	Vertical double spiral	N-1300EF	N-1300EF-W	N-1300EF-WB	–	–	–
Type V	Vertical double spiral + adapter	N-1300V	N-1300V-W	N-1300V-WB	N-1210BV	N-1210BV-W	N-1210BV-WB
Type VF	Vertical double spiral + adapter	N-1300VF	N-1300VF-W	N-1300VF-WB	N-1210BVF	N-1210BVF-W	N-1210BVF-WB
Type S	Diagonal double spiral	N-1300S	N-1300S-W	N-1300S-WB	N-1210BS	N-1210BS-W	N-1210BS-WB
Type T	Dewar flask type	–	–	–	N-1210BT	N-1210BT-W	N-1210BT-WB
