Evaporator System Configuration
Recommended EYELA system configurations for rotary, test tube, and centrifugal evaporators. We can also accommodate various other configurations tailored to your specific experimental needs. Please feel free to contact EYELA or your nearest distributor.
Small-Size Rotary Evaporators

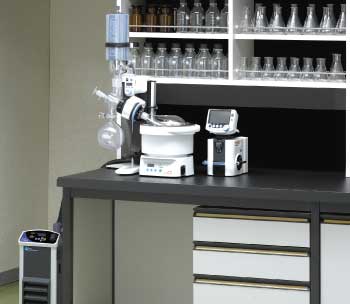

1. Standard System: Controlling Appropriate Vacuum with Vacuum Controller
Cat. No. Product name Model QTY — Rotary evaporator N-1300V-W 1 — Low temperature circulator CCA-1112A 1 — Inverter diaphragm vacuum pump NVP-1000V 1 269378 Vacuum controller NVC-3000 1 269410 NVC-NVPV connection cord (0.5m) NNV-0.5M 1 270100 Vacuum controller mounting board NVC3000-NVP-V 1 269460 NVC communication cord (1m) COM-1M 3 269470 NVC communication cord (2m) COM-2M 1 270740 Anti-condensation cover For E・V 1 269620 Branch box for NVC communication F-BOX 1 267980 One-touch connector 2-pc set 1 244940 One-touch cooling hose set 10mm OD, 2m 2 119170 Vacuum hose 6 ID x 15mm OD, 5m 1 282130 Anti-condensation nozzle cover B set 1 System code: SYS09532 System code for EYELA coat® glass: SYS09533

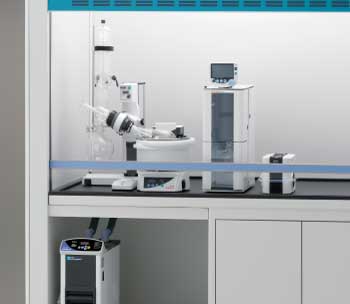

2. Standard System: For Inside a Fume Hood
Cat. No. Product name Model QTY — Rotary evaporator N-1210BV-W 1 — Low temperature circulator CCA-1112A 1 — Inverter diaphragm vacuum pump NVP-1000V 1 271180 Solvent recovery unit DPE-1150 1 269460 NVC communication cord (1m) COM-1M 3 269470 NVC communication cord (2m) COM-2M 1 269420 NVC-NVP connection cord (2m) NNV-2M 1 269620 Branch box for NVC communication F-BOX 1 112700 Cooling hose set 9mm ID, 2m 2 112690 Cooling hose set 9mm ID, 1m 1 119170 Vacuum hose 6 ID x 15mm OD, 5m 1 282130 Anti-condensation nozzle cover B set 1 System code: SYS09516 System code for EYELA coat® glass: SYS09517

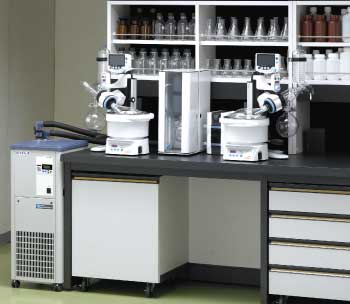

3. Placing Two Evaporators Side-by-Side on a Lab Bench
Cat. No. Product name Model QTY — Rotary evaporator N-1300E-W 2 — Low temperature circulator CA-1116A 1 — Diaphragm vacuum pump NVP-2000 1 271200 Solvent recovery unit DPE-2150 1 269480 Vacuum controller mounting board NVC3000-N1300 2 269460 NVC communication cord (1m) COM-1M 6 269470 NVC communication cord (2m) COM-2M 1 269620 Branch box for NVC communication F-BOX 2 112700 Cooling hose set 9mm ID, 2m 5 112690 Cooling hose set 9mm ID, 1m 2 119170 Vacuum hose 6 ID x 15mm OD, 5m 1 282120 Anti-condensation nozzle cover A set 1 System code: SYS09490 System code for EYELA coat® glass: SYS09491

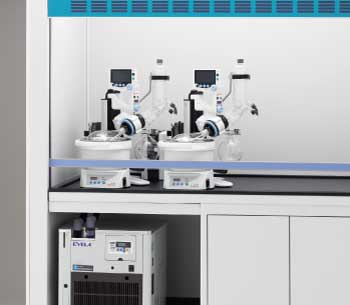

4. Installing Two Rotary Evaporators under a Fume Hood
Cat. No. Product name Model QTY — Rotary evaporator N-1300E-W 2 — Low temperature circulator CA-1330 1 — Diaphragm vacuum pump NVP-2000 1 269378 Vacuum controller NVC-3000 2 269430 Solenoid valve for NVC control CV-11 2 269380 Diaphragm pump control box PBX 2 275930 NVC-PBX connection cord (1m) NP-1M 2 245100 Communication cable A for vacuum control VC-2M 1 269490 Vacuum controller mounting board NVC・PBX-N1300 2 269450 NVC communication cord（0.5m） COM-0.5M 6 269470 NVC communication cord（2m） COM-2M 1 269620 Branch box for NVC communication F-BOX 2 112700 Cooling hose set 9mm ID, 2m 4 119170 Vacuum hose 6 ID x 15mm OD, 5m 1 282120 Anti-condensation nozzle cover A set 1 System code: SYS09492 System code for EYELA coat® glass: SYS09493
Medium-Size Rotary Evaporators

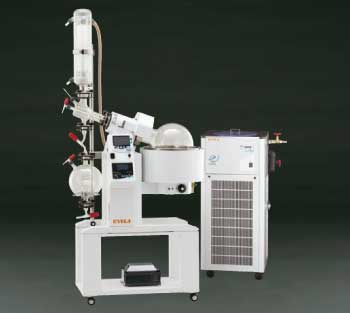

5. Standard 20L Sample Flask System (Model N-4100)
Cat. No. Product name Model QTY 281208 Rotary evaporator N-4100 1 — Low temperature circulator CA-2610 1 251170 Diaphragm vacuum pump N950 1 174460 Cooling hose set 15mm ID, 5m 2 119190 Vacuum hose 9 ID x 21mm OD, 5m 1 System code: SYS09513

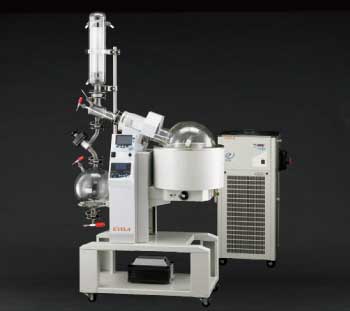

6. Standard 10L Sample Flask System (Model N-3100)
Cat. No. Product name Model QTY 280748 Rotary evaporator N-3100 1 — Low temperature circulator CA-2610 1 251170 Diaphragm vacuum pump N950 1 245370 Power supply connection cord For N950 1 74460 Cooling hose set 15mm ID, 5m 2 119190 Vacuum hose 9 ID x 21mm OD, 5m 1 System code: SYS09483
Test Tube Evaporator

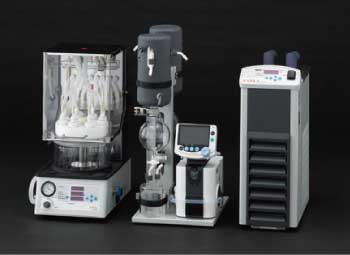

7. Small volume, high speed concentration using vacuum control system
Cat. No. Product name Model QTY 248970 Test tube evaporator TVE-1100A 1 — Low temperature circulator CCA-1112A 1 229720 Solvent recovery unit DPE-1400 1 230960 Condenser for DPE-1400 (intake side) — 1 — Diaphragm vacuum pump NVP-1000 1 269378 Vacuum controller NVC-3000 1 269430 Solenoid valve for NVC control CV-11 1 269380 Diaphragm pump control box PBX 1 269390 NVC-PBX connection cord (0.5m) NP-0.5M 1 269470 NVC communication cord (2m) COM-2M 1 270090 Vacuum controller mounting board NVC・PBX-NVP 1 112700 Cooling hose set 9mm ID, 2m 2 119170 Vacuum hose 6 ID x 15mm OD, 5m 1 282130 Anti-condensation nozzle cover B set 1 System code: SYS09506
Centrifugal Evaporator

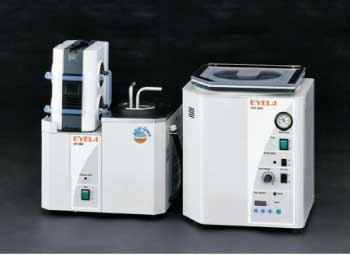

8. Aqueous sample centrifugal concentration system
Cat. No. Product name Model QTY — Centrifugal evaporator CVE-3000 1 192450 Rotor R-3100B 1 — Desktop cold trap UT-1000 1 192410 Cover B with nozzle for UT-1000 — 1 — Diaphragm vacuum pump NVP-2100 1 119170 Vacuum hose 6 ID x 15mm OD, 5m 1 119280 Vacuum hose adapter E type 1 System code: SYS09480
