EYELA genuine parts are manufactured under strict standards and quality criteria to fully demonstrate and maintain the performance of our products. When placing an order, please specify the product name and Cat. No. indicated in the table on the bottom of this page.
Select an appropriate model to jump to its details ⇒⇒⇒

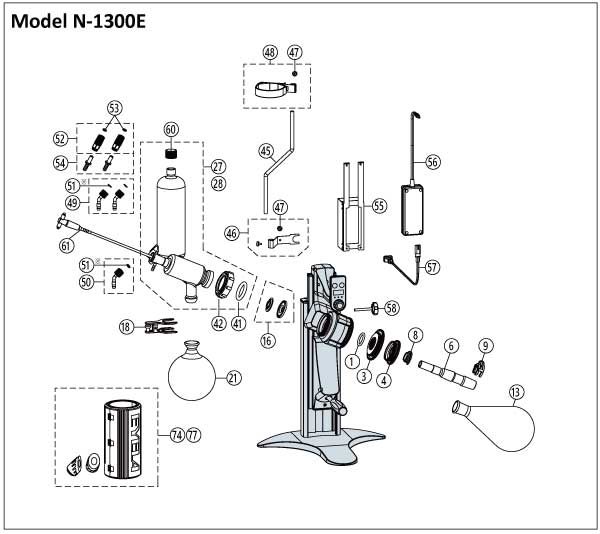

Model N-1300E

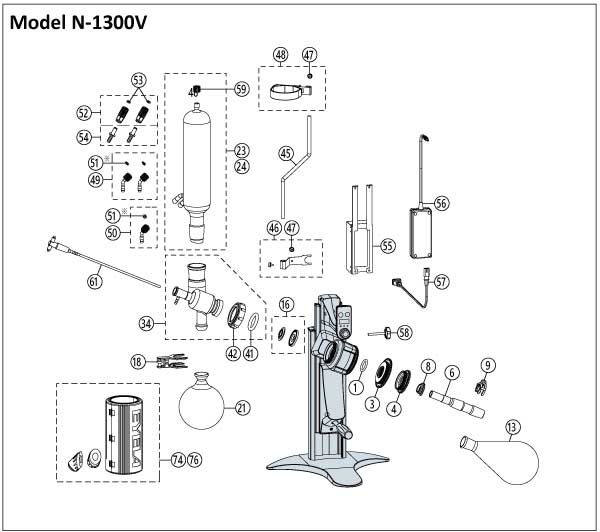

Model N-1300V

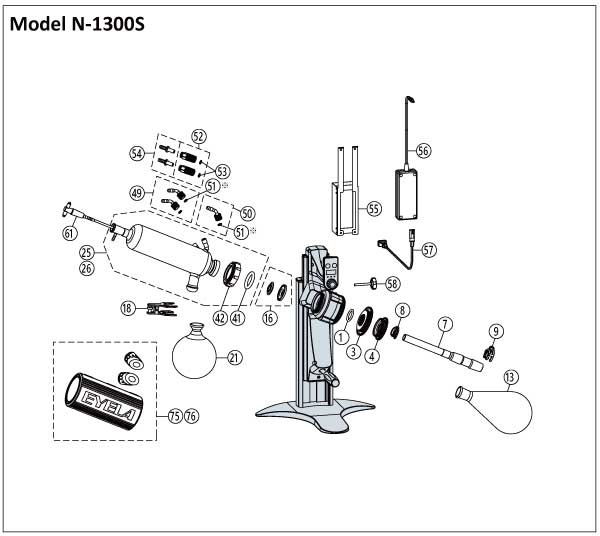

Model N-1300S

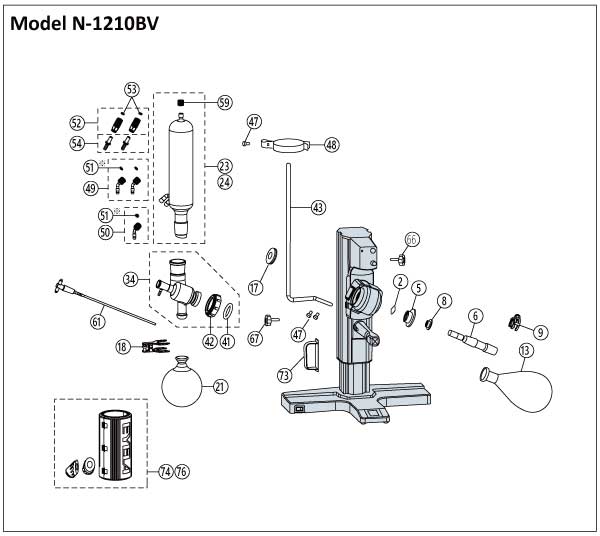

Model N-1210BV

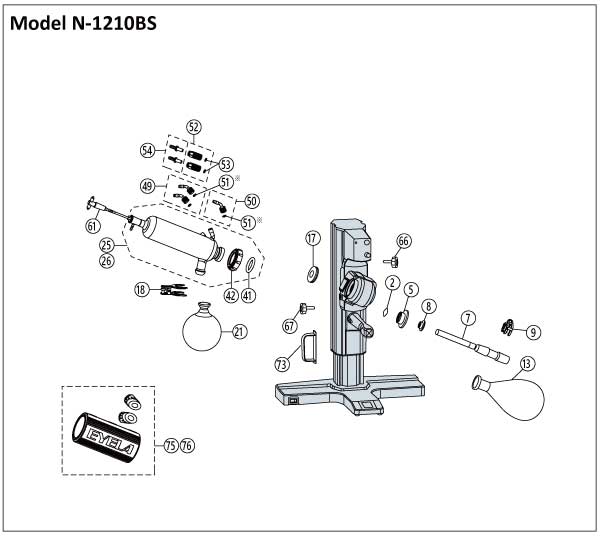

Model N-1210BS

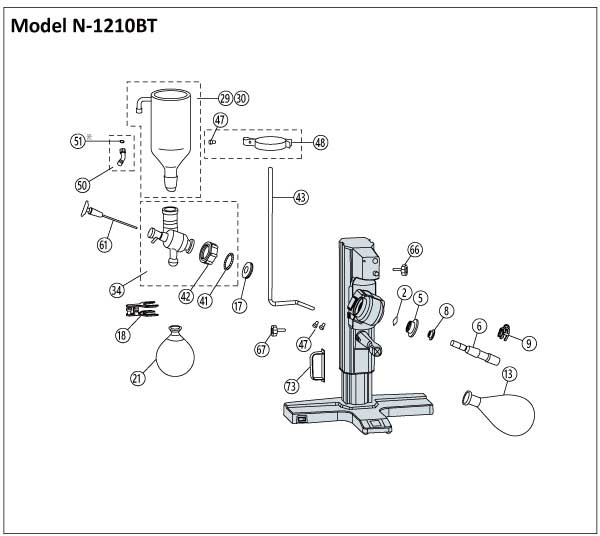

Model N-1210BT

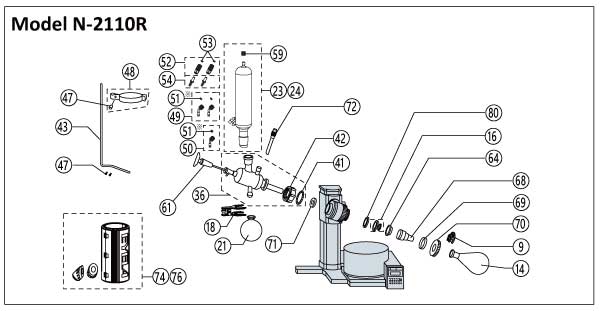

Model N-2110R

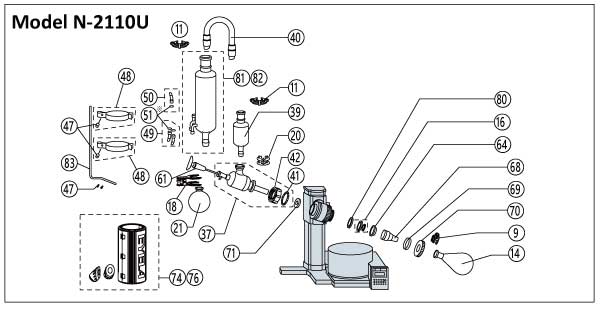

Model N-2110U

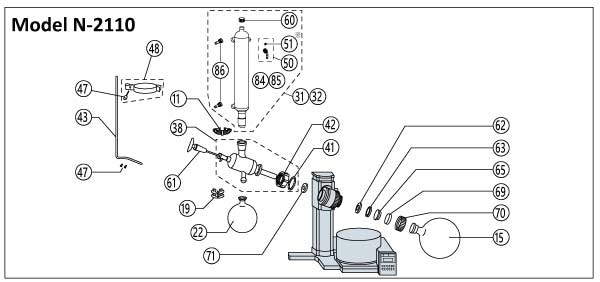

Model N-2110
Genuine Parts Table (1/2)
| No. | Product name | Compatible models | QTY | Cat. No. |
| ① | Sleeve ring spring | For N-1300 | 1 | 267620 |
| ② | Sleeve pin | For N-1210 | 2 | 142650 |
| ③ | Lock sleeve | For N-1300 | 1 | 267630 |
| ④ | Flask removing screw | For N-1300 | 1 | 267640 |
| ⑤ | Flask removing screw | For N-1210 | 1 | 245540 |
| ⑥ | Rotary joint 178mm TS29/38 | For Type E · V · T condenser | 1 | 142520 |
| ⑦ | Rotary joint 272mm TS29/38 | For Type S condenser | 1 | 142500 |
| ⑧ | Rotary joint ring TS29 | For N-1300 · 1210 | 2 | 192600 |
| ⑨ | EYELA clip TS29 resin | For N-1300 · 1210 | 2 | 142540 |
| ⑩ | EYELA clip TS29 metal | For N-1300 · 1210 | 1 | 187890 |
| ⑪ | EYELA clip TS45 | For N-2110 | 1 | 142860 |
| ⑬ | Sample flask 1000mL TS29/38 | For N-1300 · 1210 | 1 | 116190 |
| ⑭ | Sample flask 2000mL TS29/38 | For N-2110U · R | 1 | 116200 |
| ⑮ | Sample flask 5000mL | For N-2110 | 1 | 142820 |
| ⑯ | Vacuum seal | For N-1300 | 2 pairs | 142610 |
| ⑰ | Teflon® seal | For N-1210 | 1 | 244980 |
| ⑱ | Ball joint clamp S35 stainless steel | For N-1300 · 1210 · 2110R | 1 | 202790 |
| ⑲ | Ball joint clamp S35 | For N-2110 | 1 | 143020 |
| ⑳ | Ball joint clamp S40 | For N-2110U | 1 | 143160 |
| ㉑ | Receiving flask 1000mL S35/20 | For N-1300 · 1210 · 2110R U | 1 | 116340 |
| ㉒ | Receiving flask 3000mL S35/20 | For N-2110 | 1 | 116360 |
| ㉓ | Condenser (Vertical double spiral) | For Type V · R condenser | 1 | 268890 |
| ㉔ | Condenser (Vertical double spiral) EYELA COAT® | For Type V · R condenser | 1 | 286950 |
| ㉕ | Condenser (Diagonal double spiral) | For Type S condenser | 1 | 268830 |
| ㉖ | Condenser (Diagonal double spiral) EYELA COAT® | For Type S condenser | 1 | — |
| ㉗ | Condenser (Integrated) | For Type E condenser | 1 | 268870 |
| ㉘ | Condenser (Integrated) EYELA COAT® | For Type E condenser | 1 | 286940 |
| ㉙ | Condenser (Vertical trap) | For Type T condenser | 1 | 271070 |
| ㉚ | Condenser (Vertical trap) EYELA COAT® | For Type T condenser | 1 | — |
| ㉛ | Condenser set | For N-2110 | 1 | 282090 |
| ㉜ | Condenser set EYELA COAT® | For N-2110 | 1 | — |
| ㉞ | Adapter | For N-1300V · 1210V | 1 | 268850 |
| ㉟ | Adapter EYELA COAT® | For N-1300V · 1210V | 1 | 286930 |
| ㊱ | Adapter (Rotary joint integrated) | For N-2110R | 1 | 234310 |
| ㊲ | Adapter (Rotary joint integrated) | For N-2110U | 1 | 185160 |
| ㊳ | Adapter (Rotary joint integrated) | For N-2110 | 1 | 142980 |
| ㊴ | Diffusion vessel | For N-2110U | 1 | 142930 |
| ㊵ | Connecting pipe | For N-2110U | 1 | 142940 |
| ㊶ | Ring spring | Common to all models | 1 | 142710 |
| ㊷ | Cap screw | Common to all models | 1 | 142700 |
| ㊸ | Condenser support | For N-1210T · 2110R · 2110 | 1 | 185210 |
Genuine Parts Table (2/2)
| No. | Product name | Compatible models | QTY | Cat. No. |
| ㊺ | Condenser support rod | For N-1300E · V | 1 | 192620 |
| ㊻ | Support rod fixing bracket | For N-1300E · V | 1 | 267660 |
| ㊼ | Set screws | For vertical N-1300 · 1210 · 2110 | 2 | 187910 |
| ㊽ | Condenser holder | For vertical N-1300 · 1210 · 2110 | 1 | 185240 |
| ㊾ | Cooling water nozzle set (Grey) | For N-1300 · 1210 · 2110R · U | 2 pairs | 178900 |
| ㊿ | Nozzle set (White) | For N-1300 · 1210 · 2110R · U | 3 pairs | 142690 |
 | Nozzle gasket ※ | For N-1300 · 1210 · 2110R · U | 12 | 142691 |
 | One-touch connector | For N-1300 · 1210 · 2110R · U | 2 pairs | 267980 |
 | Gasket for one-touch connector | For N-1300 · 1210 · 2110R · U | 12 | 260960 |
 | One-touch hose nozzle | For N-1300 · 1210 · 2110R · U | 2 pairs | 247210 |
 | Power supply holder | For N-1300 | 1 | 267670 |
 | AC power supply adapter | For N-1300 | 1 | 267680 |
 | AC power adapter power cord (100V) | For N-1300 | 1 | 267690 |
 | Angle adjustable grip | For N-1300 | 1 | 272640 |
 | Sealing plug for Type V condenser | For N-1300V · 1210V · 2110R | 1 | 232840 |
 | Sealing plug for Type E condenser | For N-1300E | 1 | 255830 |
 | Capillary TS19/40 Teflon® tube | Common to all models | 1 | 116540 |
 | Teflon® gasket | For N-2110 | 1 | 143000 |
 | Vacuum seal | For N-2110 | 1 | 143940 |
 | Seal defenser | For N-2110R・U | 1 | 185250 |
 | Seal defenser | For N-2110 | 1 | 142950 |
 | Knob bolt M6-25L | For N-1210 | 1 | 245580 |
 | Manual slide knob bolt M6-35L | For N-1210 | 1 | 245590 |
 | Joint adapter | For N-2110 · R · U | 1 | 142840 |
 | Soft gasket | For N-2110 · R · U | 1 | 142990 |
 | Screw cap for sample flask | For N-2110 · R · U | 1 | 913690 |
 | Resin gasket | For N-2110 · R · U | 1 | 193390 |
 | Stop valve | For N-2110 · R | 1 | 234320 |
 | Hose holder | For N-1210 | 1 | 245570 |
 | Anti-condensation cover | For Type E · V · R · U condenser | 1 | 270740 |
 | Anti-condensation cover | For Type S condenser | 1 | 270730 |
 | Transparent cover | For Type S · V · R · U condenser | 1 | 266110 |
 | Transparent cover | For Type E condenser | 1 | 270350 |
 | Teflon® gasket | For N-2110R · U | 1 | 185200 |
 | Low vertical condenser | For N-2110Ｕ | 1 | 270270 |
 | Low vertical condenser EYELA COAT® | For N-2110Ｕ | 1 | — |
 | Condenser support | For N-2110Ｕ | 1 | 185220 |
 | Condenser (Vertical triple spiral) | For N-2110 | 1 | 282070 |
 | Condenser (Vertical triple spiral) EYELA COAT® | For N-2110 | 1 | — |
 | Nozzle set (GL25 x 14mm diameter） | For N-2110 | 2 | 282110 |
※ Viton® O-ring (Cat. No. 202770) has the higher corrosion resistance than the item 51 listed above.
