• Programmable functions for versatile applications
♦ Wide Temperature Range Control: Ensures precise regulation within ±0.03°C across a broad range.
♦ PC Connectivity: Includes measurement and control software for processing temperature trend data when connected to a PC.
♦ Precision Temperature Programming: Supports accurate temperature ramping and cooling with up to 7 user-defined patterns (each with up to 10 segments) and enables pattern linking.
♦ User-Defined Program Options: Allows selection of post-program actions: stop, maintain final temperature, or return to initial settings.

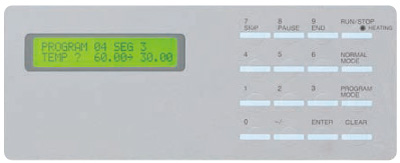

• Intuitive control panel
Program parameters can be easily set using the numeric keypad.

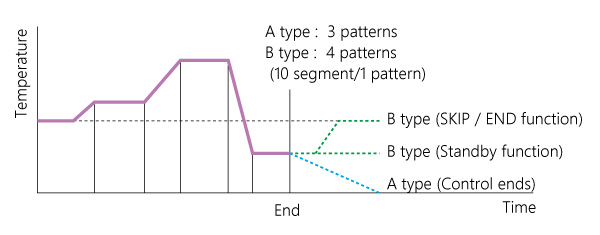

• Programmable operation modes
User Programs |
![]() |
Type A (3 patterns): Stops operation after the program ends. Type B (4 patterns): Activates standby mode to maintain the final temperature after the program ends. In Type B mode, the standby function allows use of the SKIP/END feature to reset the system to its initial temperature and maintain that condition. After loading a new sample, simply press the key to restart the program, enabling seamless repeat operations. |

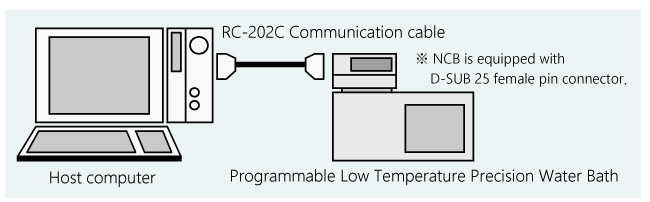

• PC interface and external circulation functionality
The NCB series features an RS-232C interface, allowing temperature control via an external host PC.A stop valve nozzle is provided for external circulation. Supports optional external temperature sensors to control target device temperatures, ensuring stable and precise operation in connected systems.
• Remote operation and data processing via dedicated software
♦ Control software ESMon2018
Temperature can be remotely controlled via RS-232C communication, and trend data can be processed using the software.
Note: Only supported in normal mode. Program mode is not supported.
Operating system | Microsoft Windows® 10 |
CPU | Pentium or higher (Pentium III 800MHz or higher recommended) |
Hard disk | A minimum of 15MB of free disk space is required. Additional storage capacity may be necessary for data recording. |
Memory | Requirements vary depending on the operating system, but 128 MB or more is recommended. |
Communication interface | A serial interface (COM1, etc.) is required. If you are using a computer that does not have a serial interface, please use a commercially available “USB-serial conversion cable.” |
• Specifications

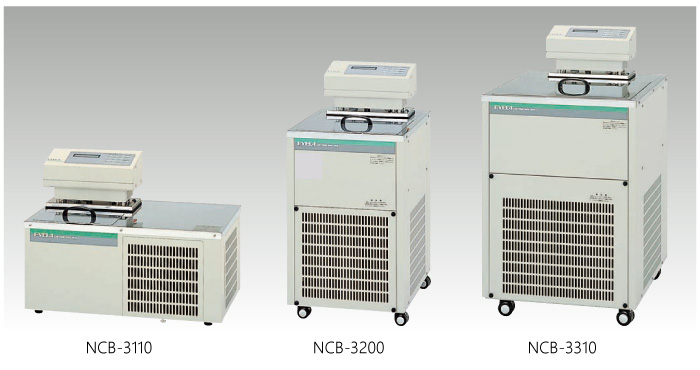

Product name | Programmable Low Temperature Precision Water Bath | ||
Model | NCB-3110 | NCB-3200 | NCB-3310 |
Cat. No. | 283020 | 112460 | 283030 |
Circulation System | Closed-loop circulation system | ||
Temperature control range |
-20 to 80°C | -30 to 80°C | -20 to 80°C |
Temperature control
accuracy |
±0.03°C | ||
External circulation capacity |
Max. discharge 6.7L/min (50Hz, water), Max. lifting height 2.9m (50Hz, water) | ||
Temperature slope |
1.3°C/min or less (heating), 1.1℃/min or less (40→0°C), 0.5℃/min or less (5→-15°C), 0.4℃/min or less (-15→-20°C) |
0.9°C/min or less (heating), 0.3°C/min or less (cooling) |
0.5°C/min or less (heating), 0.2°C/min or less (cooling) |
Cooling capacity at 20°C | 370W (318kcal/h) | 480W (412kcal/h) | 610W (524kcal/h) |
Cooling capacity at -10°C | 220W (189kcal/h) | 350W (301kcal/h) | 420W (361kcal/h) |
Temperature control | PID control with SSR output (JPt 100Ω platinum resistance thermometer) | ||
Temperature setting・display | Numeric keypad input; minimum setting unit: 0.01°C; digital display | ||
Program function | 1.Fixed value operation (Normal mode) 2.Auto start 3.Auto stop (1min to 99hr59min) 4. User programs: 7 patterns (max. 10 segments/pattern, 1min to 99hr59mim/segment) |
||
Safety features | Self-diagnostics (low water level, sensor error, SSR failure, overheating, heater disconnection, cooling failure, power failure, program slope failure), Earth leakage/overcurrent breaker, Refrigerator overload relay | ||
External I/O | RS-232C communication port; External temperature sensor terminal | ||
Temperature sensor | JPt 100Ω platinum resistance thermometer | ||
Heater | 1.2kW (stainless steel) | ||
Bath stirring method | Jet stream circulation | ||
Bath material | Stainless steel | ||
Inner bath dimensions (mm) |
250W x 295D x 180H | 320W x 405D x 180H | 430W x 517D x 180H |
Effective bath
dimensions (mm) |
215W x 135D x 160H | 280W x 240D x 160H | 400W x 354D x 160H |
Bath capacity | 13L | 23L | 41L |
External circulation nozzle |
10.5mm OD discharge port (Rc1/4, with stop valve) and return port (Rc1/4); close system | ||
Cooling coil | Stainless steel | ||
Refrigerator / Refrigerant | 450W air-cooled (R452A) | 400W air-cooled (R407C) | 400W air-cooled (R452A) |
Ambient operating temperature |
5 to 30℃ | ||
Power input | 19.5A, 1.95kVA | 20A, 2kVA | 20A, 2kVA |
Power supply | 100VAC, 50/60Hz | ||
External dimensions
(mm) |
620(635)W x 390(440)D x 464H | 393W x 511D x 793H | 513(528)W x 632(672)D x 898H |
Weight | Approx. 46㎏ | Approx. 48㎏ | Approx. 59㎏ |
◊ Performance values are based on measurements at 20°C ambient temperature, 50Hz rated power supply, using water or ethanol as the circulating fluid, and under no-load conditions.
◊ For settings of 10°C or below, use a low-temperature heat transfer medium.
◊ Dimensions in parentheses ( ) include protrusions.
• Options
• Insulated hose set
9 mm ID tubing (temperature range: –30 to 80°C)
Length | Cat. No. |
1m | 112690 |
2m | 112700 |
3m | 174420 |
• Other options
Product name | Model | Cat. No. | Description |
Communication cable | - | 167370 | Cable for measurement and control software |

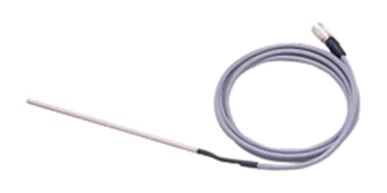

External temperature sensor
|
STP-200 | 113620 | For controlling bath temperature based on the temperature at the external circulation point |
Clamp set | - | 164500 | Used for securing flasks or other vessels immersed in the bath Standard: Tapered female thread Rc3/8 |
• Data

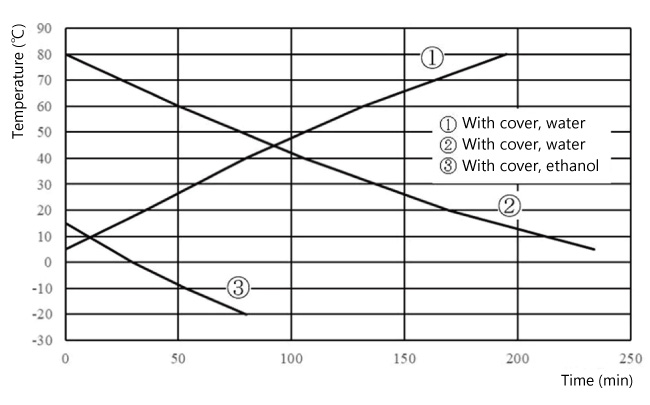

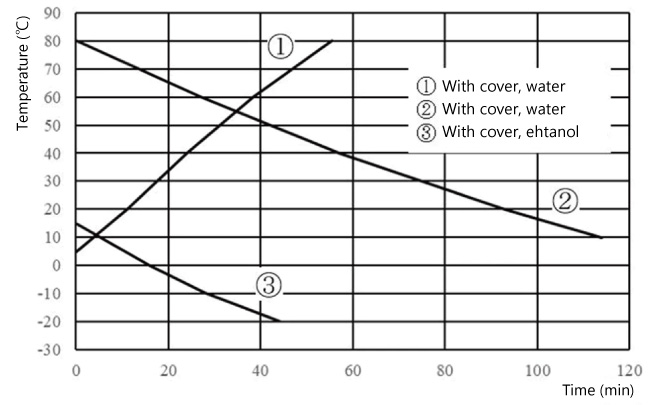

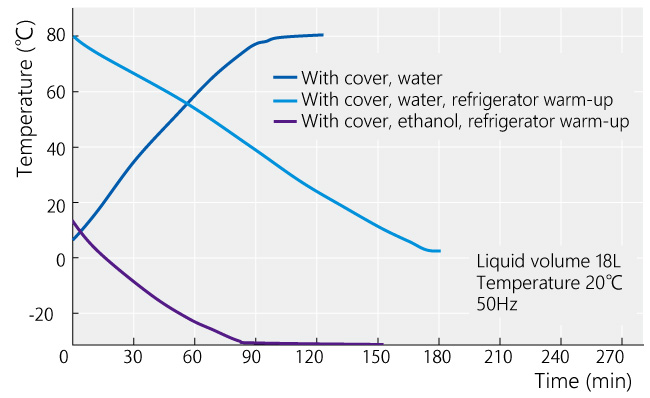

• Heating and cooling curves
♦ NCB-3110
Conditions: Liquid volume 18L, ambient temperature 20°C, 50Hz, data recorded after the refrigerator warm-up
♦ NCB-3200
Conditions: Liquid volume 18L, ambient temperature 20°C, 50Hz, data recorded after the refrigerator warm-up
♦ NCB-3310
Conditions: Liquid volume 18L, ambient temperature 20°C, 50Hz, data recorded after the refrigerator warm-up
