High-Performance & Easy-to-Use Genuine Rotary Evaporator Accessories

Rotary joints (Vapor ducts)

Featuring the EYELA brand, genuine rotary joints are manufactured under strict quality control, ensuring uniform wall thickness and zero runout. A variety of types are available to suit your specific applications: standard type, heavy-duty thick-walled type for large-capacity flasks, and grease-free taper joint type. Quartz glass types for analytical applications can also be custom-manufactured upon request.

Sample (pear shaped) flasks

These are genuine sample flasks. Featuring minimal runout and virtually no air bubbles, the sample flasks are built to withstand rigorous use under high rotation and high vacuum.

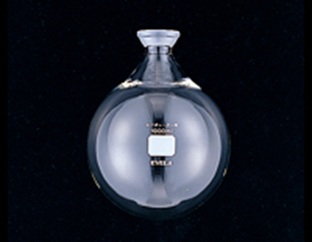

Receiving flasks

These are genuine receiving flasks. Featuring minimal runout and virtually no air bubbles, the sample flasks are built to withstand rigorous use under high rotation and high vacuum.

Trap balls

Bearing the EYELA brand, these genuine trap balls deliver stable quality with zero runout. In the event of bumping, they prevent the sample from flowing back into the flask or contaminating the receiving flask. When using a small-capacity sample flask, they serve a dual purpose as both a bumping prevention device and a coupling adapter. For more details about a trap ball, click here.
Note: (A): Rotary joint side, (B): Sample (pear shaped) flask side

Separable flasks

	Product name	Standard	Inner diameter (ID) x Height (mm)	QTY	Cat. No.
Separable cover	Used in combination with separable sample flasks. The 50mm ID type is compatible with separable sample flasks from 50 to 300mL, while the 75mm ID type can be used interchangeably with 500mL and 1L separable sample flasks.	TS29/38	50 x 82	1	116460
		TS24/40	50 x 82	1	116470
		TS29/38	75 x 82	1	116480
		TS24/40	75 x 82	1	116490

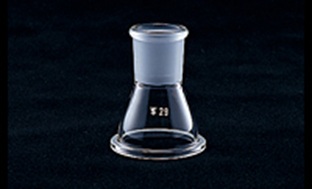

Separable sample flask	Featuring a large inner diameter (ID) of 75mm (50mm), the wide opening allows dried samples to be easily recovered with minimal loss. Cleaning is also straightforward.	50mL	50 x 60	1	116400
		100mL	50 x 100	1	116410
		200mL	50 x 110	1	116420
		300mL	50 x 125	1	116430
		500mL	75 x 152	1	116440
		1L	75 x 185	1	116450

	Product name	Compatible flask capacity	Applicable inner diameter (ID)	Cat. No.
Separable clamp	Securely fixes the separable sample flask and cover. The protrusion-free design ensures safety during rotation.	50 to 300mL	50mm	116500
		500・1000mL	75mm	116510
Separable seal gasket	Made of Teflon® (PTFE), offering excellent chemical resistance. Vacuum can be maintained simply by fastening with the separable clamp. The flanged design also ensures easy installation.	50 to 300mL	50mm	116520
		500・1000mL	75mm	116530

Test tube adapters and Glass coupling adapters

	Product name	Connection to	Test tube taper joint (TS)	Taper joint (TS)	Cat. No.

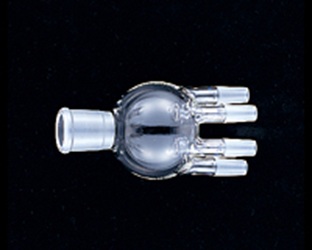

Test tube adapter	This adapter allows six test tubes to be attached to a compact rotary evaporator. It is ideal for concentrating small-volume samples and for doping tests.	Test tubes	15/25	29/38	116550
			15/25	24/40	143870
Test tubes with taper joint		Test tube adapter	TS15/25 (6 pcs/pair)	—	201450

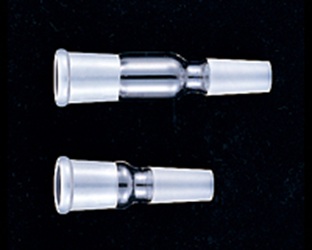

Glass coupling adapters		For safety caps	—	29/38 x 24/40	116930
			—	29/38 x 19/33	116940
	Connects joints of different sizes.		—	29/42 x 15/30	116950
		For rotary joints	—	29/38 x 24/40	116870
			—	29/38 x 19/38	116880
			—	29/38 x 15/25	116890
			—	24/40 x 29/38	116900
			—	24/40 x 19/38	116910
			—	24/40 x 15/25	116920

Condensers and Adapters

• This is a genuine standard condenser compatible across the small-size rotary evaporators. Various types are available to suit your specific applications, enabling the efficient recovery of various solvents.
• A condenser adapter is required for the vertical double spiral condenser and Dewar flask type condenser.
• Nozzles are not supplied with the condenser. Please prepare compatible nozzles and connectors separately as options.

Product name	Type	Cat. No.
Vertical double spiral condenser	Type V	268890
Vertical double spiral condenser (adapter integrated)	Type V	271090
Diagonal double spiral condenser (with liquid accumulation prevention structure)	Type S	268830
Vertical double spiral condenser (adapter integrated, with liquid accumulation prevention structure)	Type E	268870
Dewar flask condenser	Type T	271070
Condenser adapter (with liquid accumulation prevention structure)	For Type V · T	268850
For suction: Nozzle sets (3 pairs)	Condenser nozzles	142690
For cooling water: Cooling water nozzle sets (2 pairs)	Condenser nozzles	178900
One-touch connectors (2 pcs)	Condenser connectors	267980
